Minelab Equinox 700 Metal Detector

THE MULTI-IQ ADVANTAGE

Why Minelab Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Nothing goes undiscovered and no terrain is off-limits. Silver, relics or jewellery. Park, field, or beach. Unearth the power of EQUINOX powered by Multi-IQ.

SIMULTANEOUS MULTI-FREQUENCY

Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ you can operate across the full spectrum of frequencies simultaneously for maximum results 4kHz, 5kHz, 10kHz & 15kHz (Equinox 700).

4 SINGLE FREQUENCY OPTIONS

For those with a specific goal in mind, EQUINOX® delivers total control and the power to choose from four single frequencies: 4/5/10/15 kHz.

SEARCH MODES

Whether you're swinging in the fields, or snorkeling at the beach, EQUINOX 700 finds treasure that other metal detectors miss.

PARK  Park mode is the most versatile for general detecting and in high trash areas such as parks and public places.

FIELD Field mode is optimised for detecting historical fields and designed to find the broadest range of target sizes.

BEACH Beach mode is optimised for all salty conditions and operates in Multi only, excels in dry sand, wet sand, & underwater.



HIGH-RESOLUTION TARGET IDs

The Equinox 700 has an expanded discrimination range of 119 target Id’s (-19 to 99). You can select all metals and hear everything or accurately customise to find only the targets you want to find. The discrimination range is the highest in any Equinox machine to date and allows for a very high degree of customisation and accuracy.

TARGET SEPARATION

Recovery Speed and Iron Bias controls how your detector responds to multiple signals: from minimising your chances of digging iron to sniffing out gold and treasures hiding within the trashiest ground and everything in between.

EXTREME PRECISION

The EQUINOX Multi-IQ engine delivers Stable IDs for even the deepest targets. Depend on solid, stable information to tell you whether to dig in or move on — when you’ve got a target, switch to Pinpoint Mode to zero-in further.

LOUD AND CLEAR AUDIO

Enjoy crystal-clear audio with lightning-fast Low Latency Wireless Headphones and In-Built Speaker (Included), or Wired Headphones and Waterproof Headphones (Accessories).

ADVANCED AUDIO CONTROL

With multiple-tone audio options, the sound of treasure has never been clearer — EQUINOX’s superior audio means you’ll not only ‘hear’ if a target is trash or treasure but you’ll also be able to gauge its size and depth simply by listening.

UNRIVALLED CONSTRUCTION

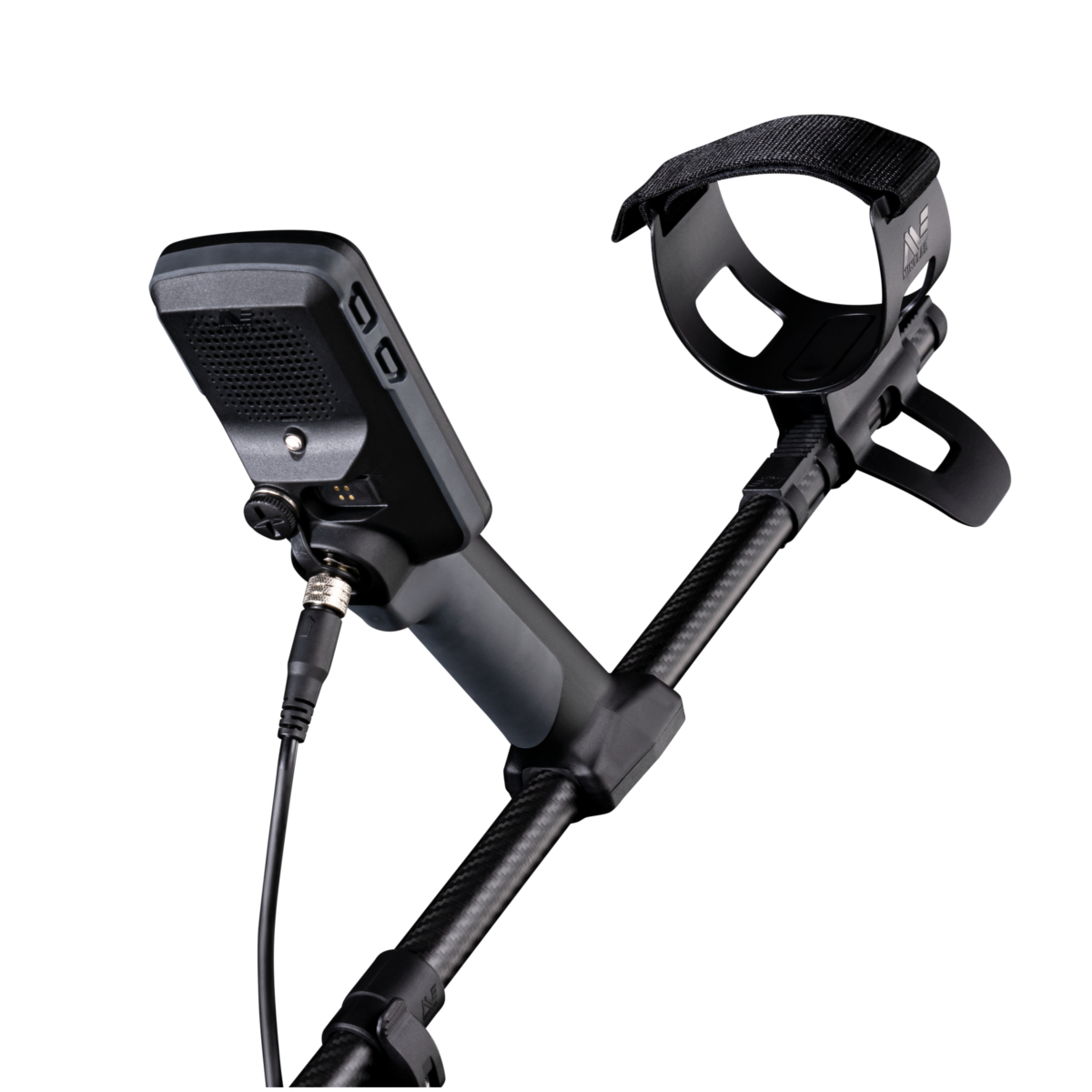

It comes with the new Minelab scorpion armrest, which was recently announced on the Manticore, the new Flagship coin, and treasure machine. The new arm rest is more comfortable, durable, and is simple to adjust, improving the detectorist's experience.

WATERPROOF

With IP68 waterproof capability to 5 m (16 ft), take EQUINOX anywhere and own the ground beneath your feet.

LIGHTING & VIBRATION

The daylight may have ended, but that doesn’t mean your hunt has to — with Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration you can power on long after the sun has gone.

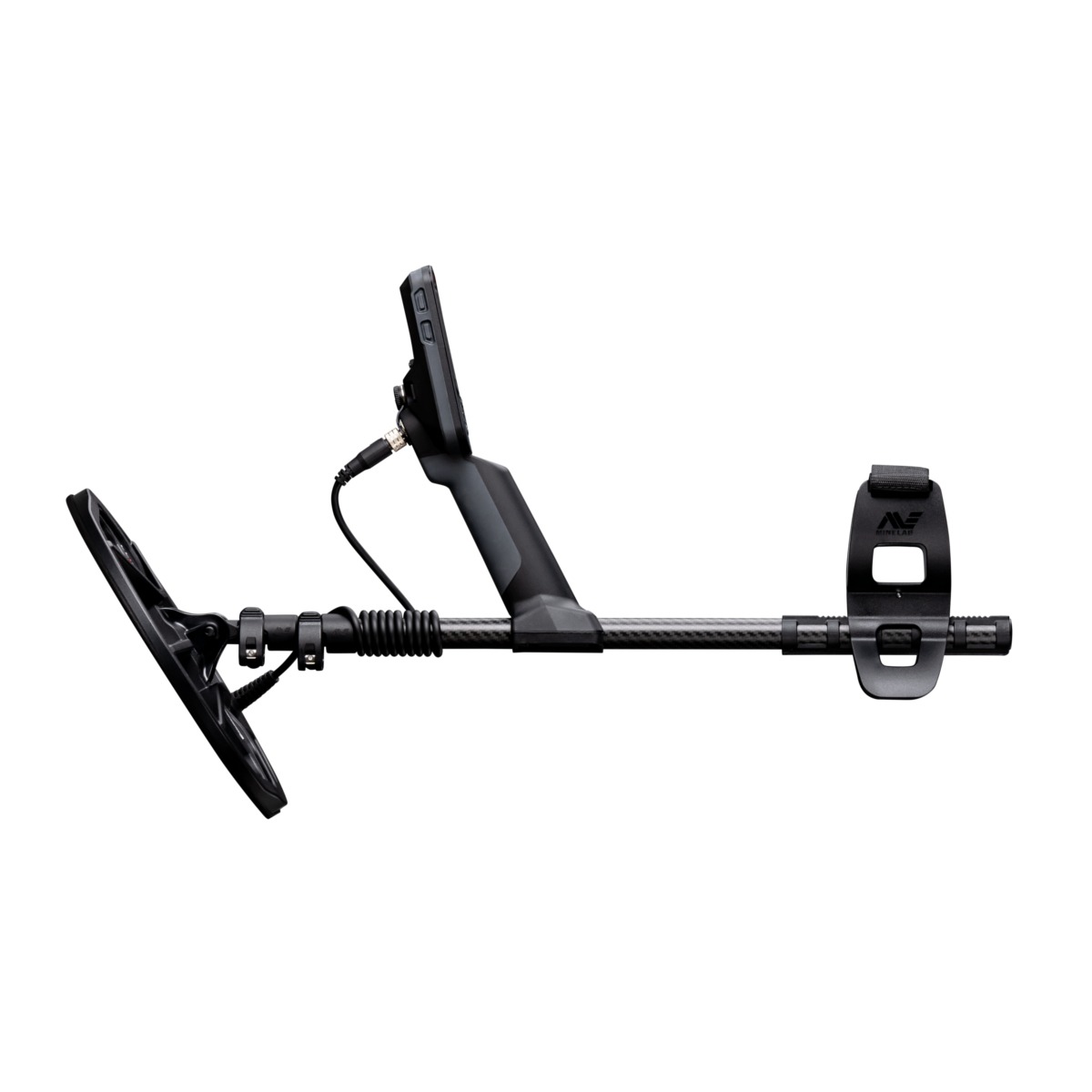

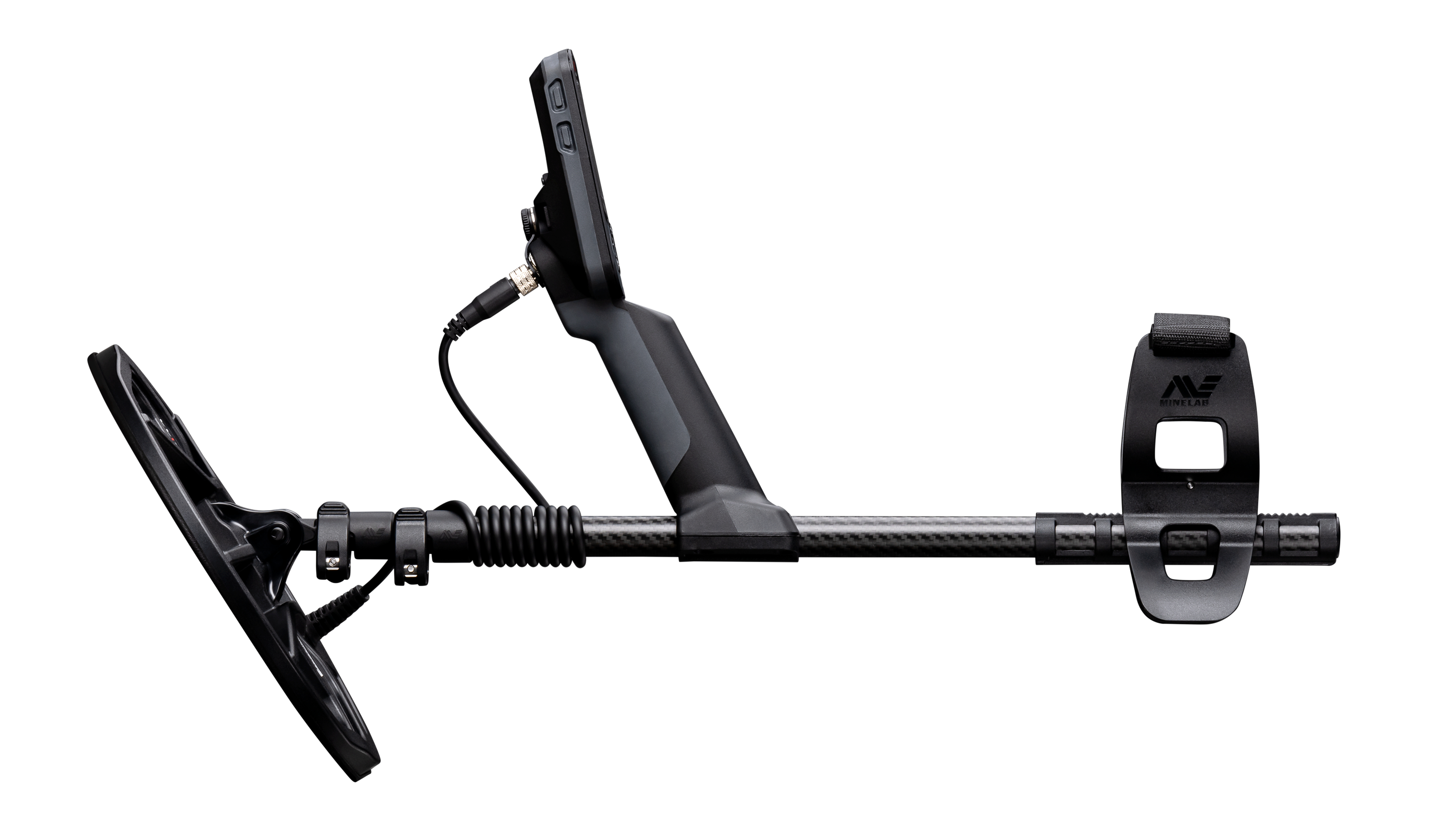

COMPACT & LIGHTWEIGHT

You no longer need to invest in aftermarket, telescopic, lighter stems, as it has it all straight out of the box. It is stronger, lighter, and more compact than its predecessor, thanks to the use of carbon fibre and telescopic construction. Comprising lightweight 3-piece carbon-fibre shafts, EQUINOX 700 weighs only 1.2 kg (2.8 lb) and packs down to a mere 61 cm (24 in) — throw it in your backpack, and you’re all set.

FEATURES OVERVIEW

• High-Resolution Target IDs, from -19 to +99
• Multi-IQ – True Simultaneous Multi-Frequency Technology
• Supreme All-Terrain Detecting – Park, Field and Beach Search Modes
• Waterproofing, to 5 metres (16ft – IP68)
• 4 Single Frequency Options – 4/5/10/15kHz
• 3-Piece Carbon Fibre Telescopic Stem (folds to 61cm)
• Lightweight, only 1.2kg
• Target Separation – Adjust Recovery Speed & Improved Iron Bias
• Control Box Flashlight, Red Backlight Display, and Vibration setting
• Advanced Audio Control – 3 Audio Modes with High Configurability
• Includes stock Coil – EQX 11” (EQX 6” & EQX 15” Available as an Accessory)
• Compatible with existing Minelab & CoilTek Equinox coils!
• Robust Design with 3-Year Warranty

EQUINOX 700 USER INTERFACE

Using the EQUINOX 700 user interface, you can:

• The crisp LCD display features large Target ID numbers so you can see your target ID at a glance.
• All of the information you need when detecting is right there in front of you.
• Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.
• View the status of your battery and wireless audio device connections.
• Turn on the backlight/flashlight with settings.
• Create your own notch discrimination patterns to ignore unwanted targets.
• Change the operating frequency, Detect Mode, and Sensitivity on the fly.
• Activate All-Metal mode to temporarily disable the current discrimination pattern.
• Activate Pinpoint mode to zero in on a promising target so that you know exactly where to dig.
• Adjust an array of essential and advanced detecting functions including Noise Cancel, Ground Balance, Volume Adjust, Threshold Level, Target Tone, Accept / Reject, and Recovery Speed.

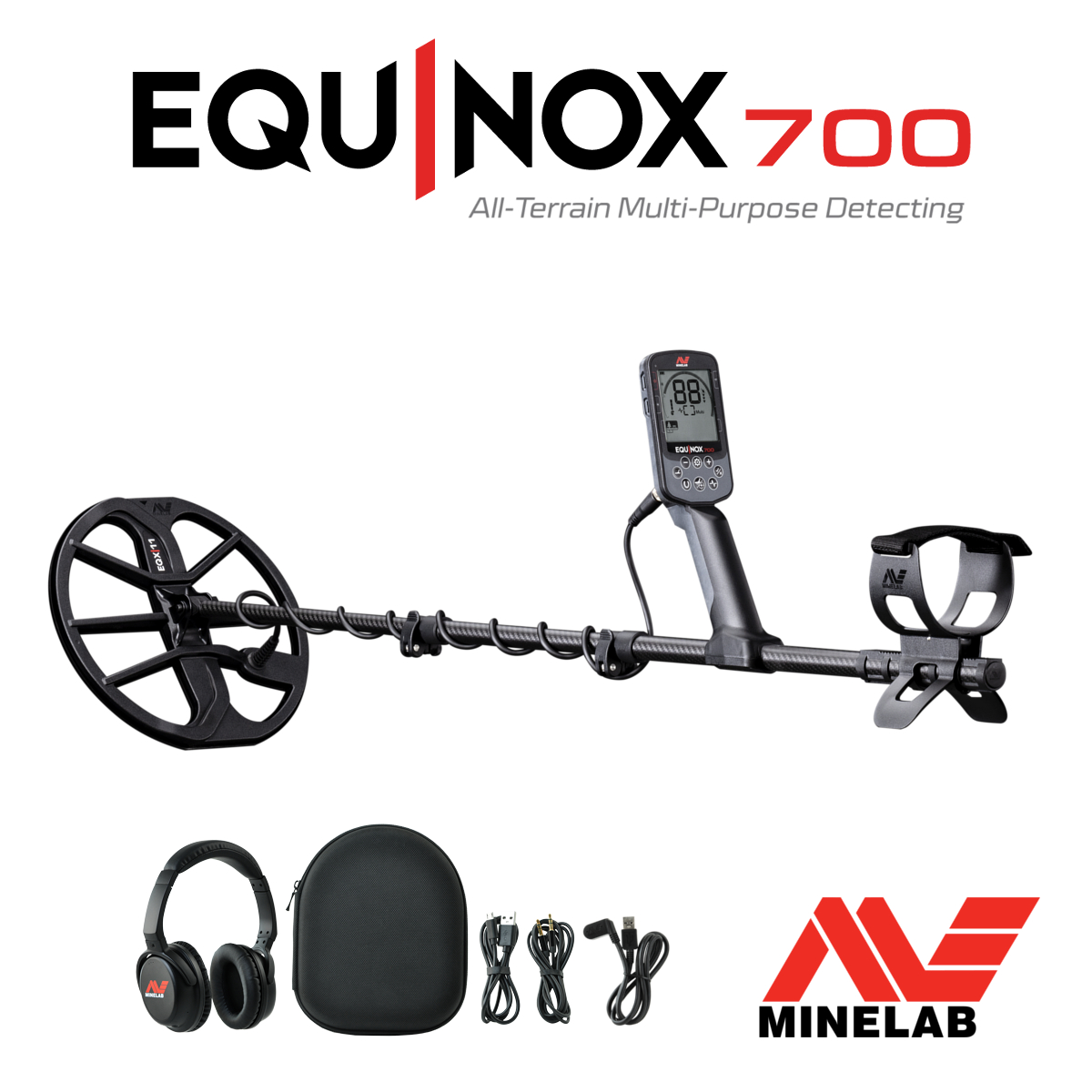

INCLUDED ACCESSORIES

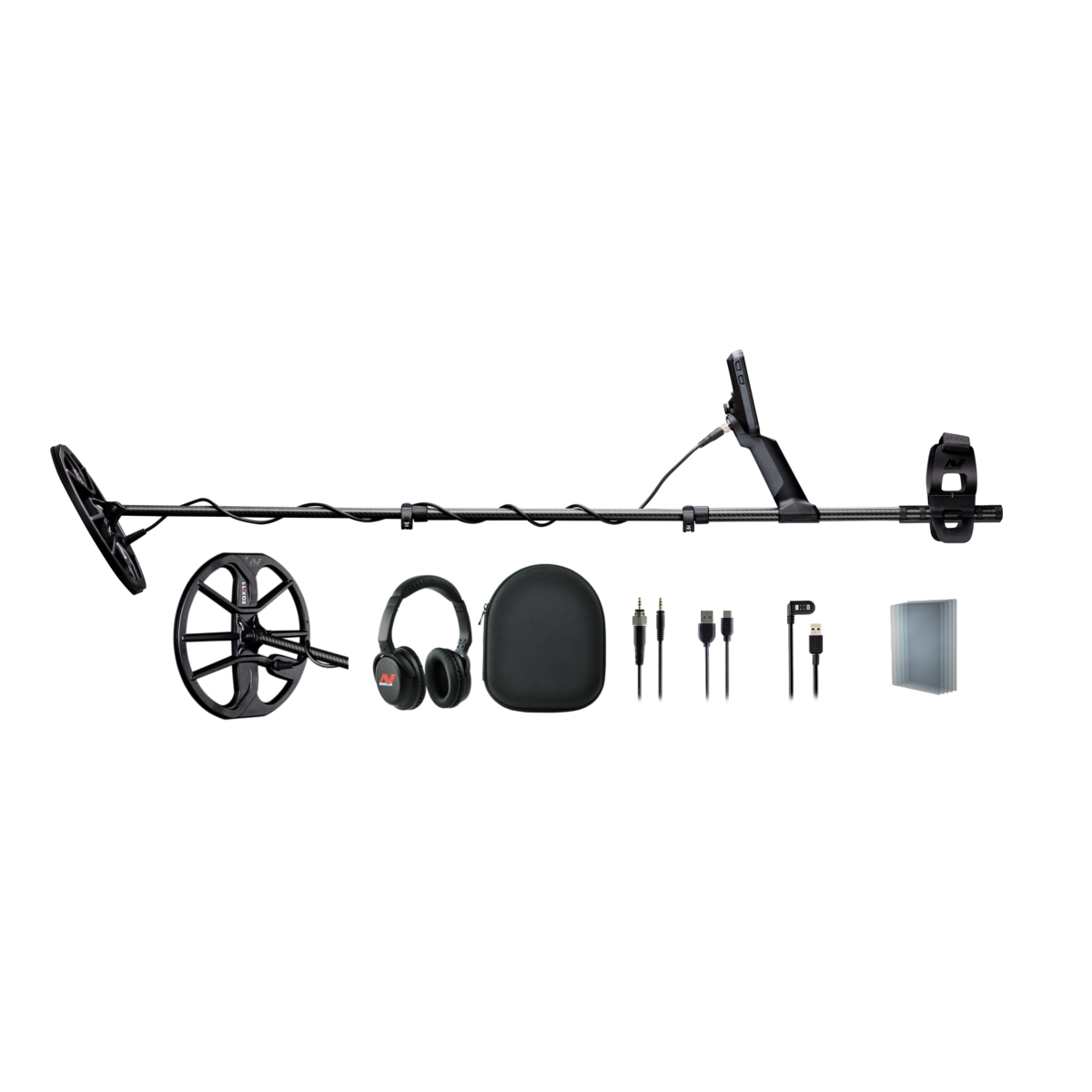

EQUINOX 700 Package Contents

• Minelab Equinox 700 Multi-Frequency Metal Detector

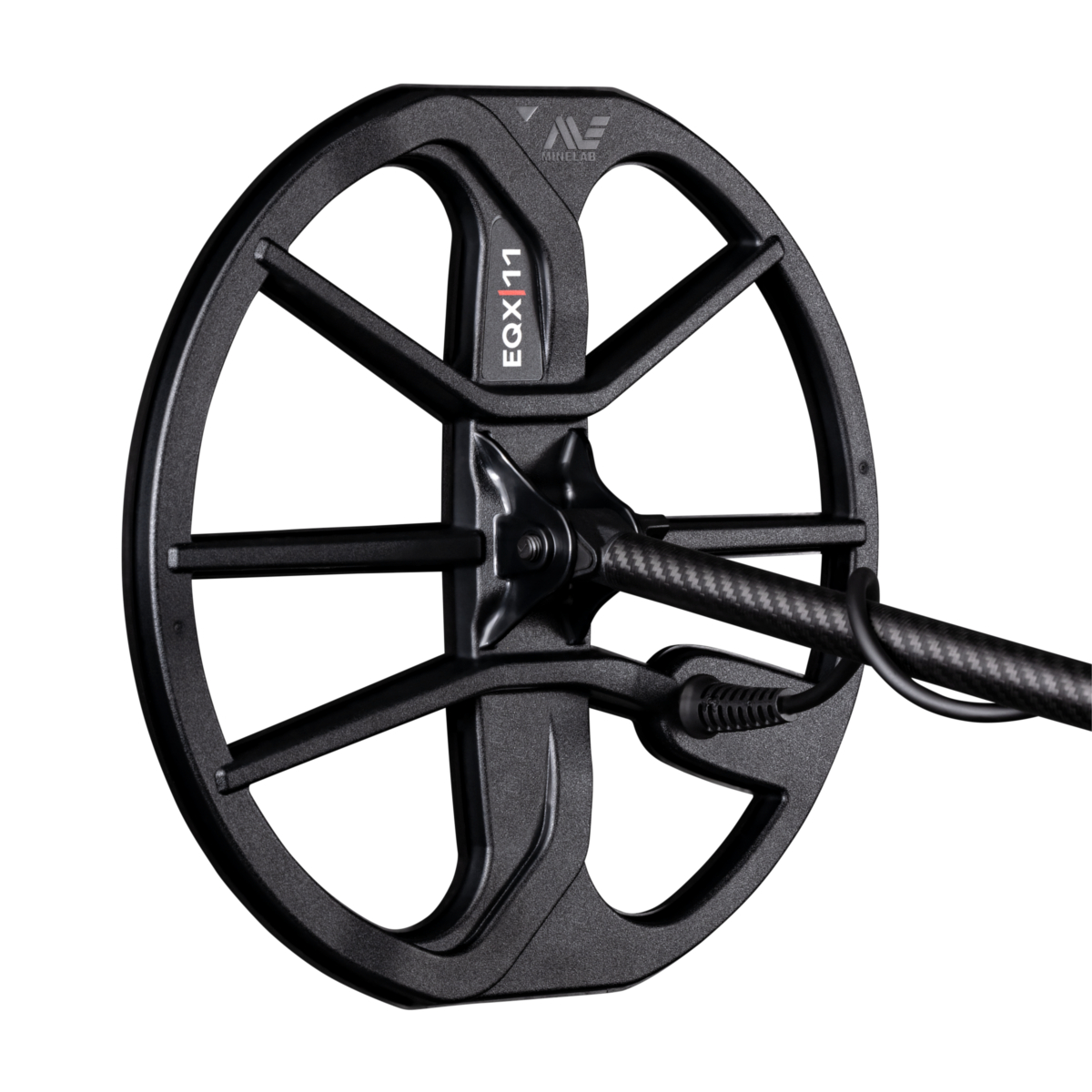

• 11" Round Double-D coil & skidplate
• ML85 Wireless Bluetooth / apt-X Low Latency headphones
• USB charging cable with magnetic connector
• Multi-language screen protectors
• Getting Started Guide

Product Manuals & Brochures

Equinox 700/900 Getting Started Guide

Equinox 700/900 Brochure

EQUINOX 700/900 Comparison Guide
