Minelab Vanquish 540 Metal Detector Pro-Pack

In stock
0.00
(0 reviews) Write a review
3820-0004
Price in points:13225 points
£52900
(£44083 Ex. VAT)

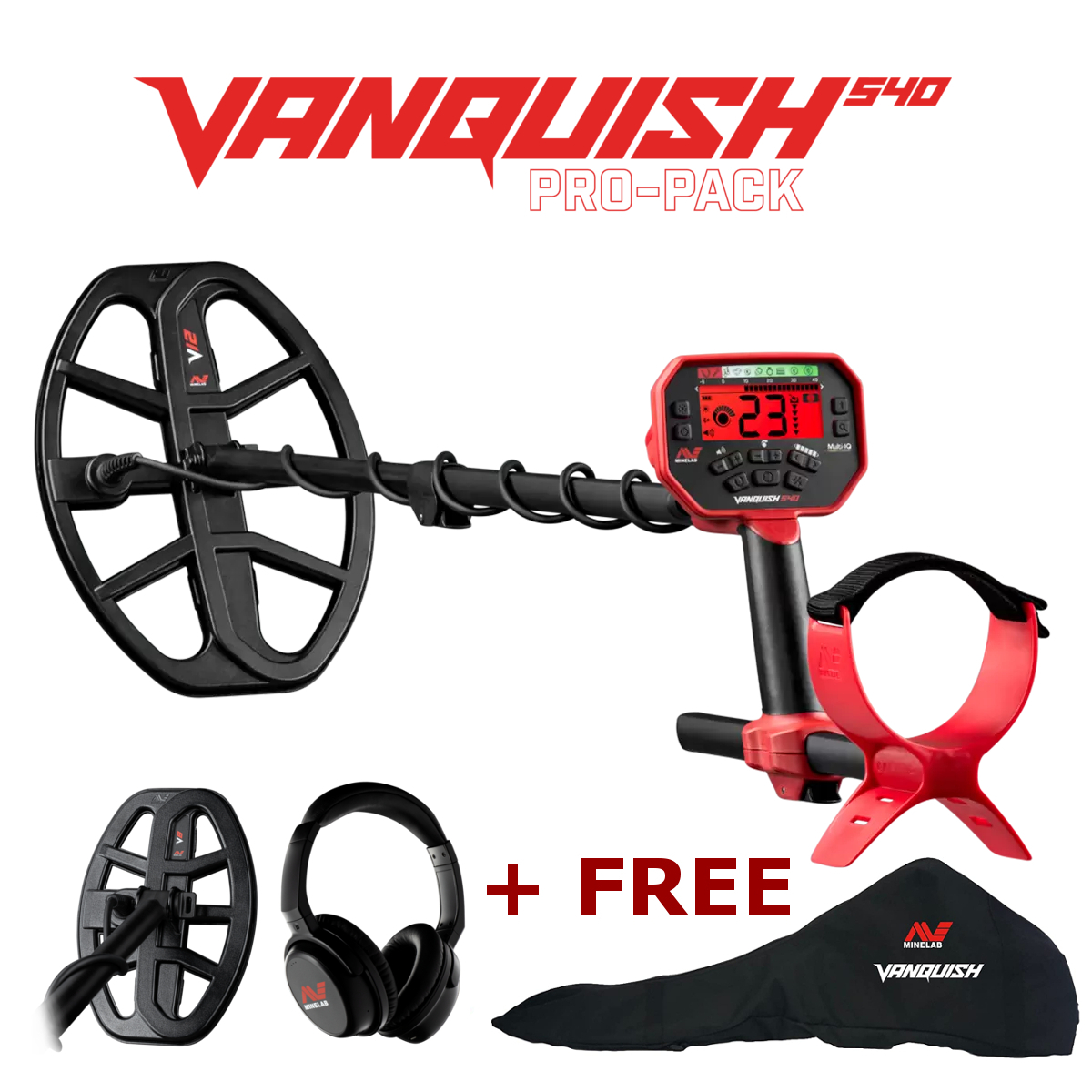

DECEMBER OFFER - Get a FREE Pro-Find 35 pinpointer & carry bag from the dropdown box when you purchase a Vanquish 540 Pro-Pack!

+
Add to cart
Delivery Options
Payment Methods



  • PayPal
  • SagePay
  • Credit Cards
  • Debit Cards
Why Buy From us



  • Fast UK & EU Delivery Available
  • Free Delivery When You Spend Over £50
  • Help & Advice with New Machine Buying
  • A Family Run Business Who Cares
  • Minimum 1 Yr Manufacturers Warranty
  • No Quibble Returns Policy
  • 25 Years of Knowledge of the Hobby
+
Minelab Vanquish 540 Metal Detector Pro-Pack
In stock
0.00
(0 reviews) Write a review

Description

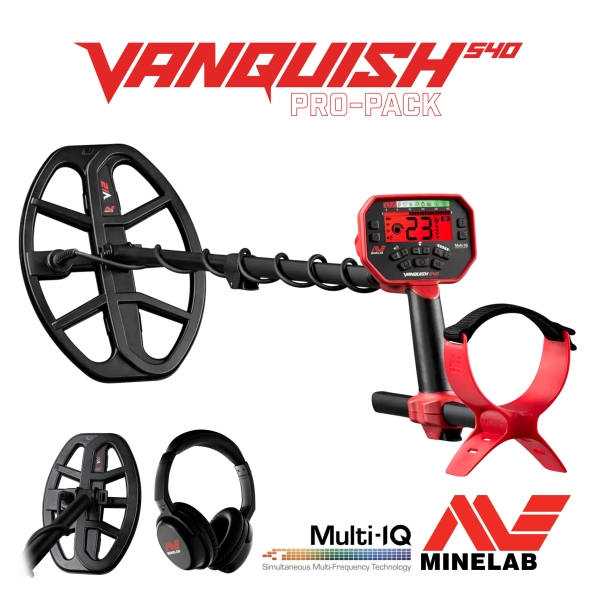

Vanquish 540 Pro-Pack

Minelab - Vanquish 540 Pro-Pack

The VANQUISH 540 Metal Detector Pro-Pack is for the serious detectorist who’s always in control. As if Multi-IQ technology, audio control and pinpoint wasn’t enough, the 540 also boasts Iron Bias control, Bluetooth headphones, red LED backlight and rechargeable batteries. What’s more, it comes with waterproof 8” and 12” coils as standard for greater depth and precision. No matter where the hunt takes you, the 540 is the ultimate pack out for those who want it all.

The Minelab Vanquish 540 Pro-pack is at the top end of the new Vanquish series. With advanced technology not found in more expensive machines and turn on and go usability combined with a lightweight, compact design, this special package contains all you need to start detecting like a pro. It is the ultimate machine for the beginner to intermediate detectorist and a serious back-up for the expert.

The Vanquish 540 Pro-Pack comes with two waterproof coils, the V8 and V12, plus Bluetooth wireless headphones, along with the advanced features of the standard 540, including a red back-light display, headphones, rain cover, arm strap, skid plate and Bluetooth aptX low-latency wireless audio, all for under £500.

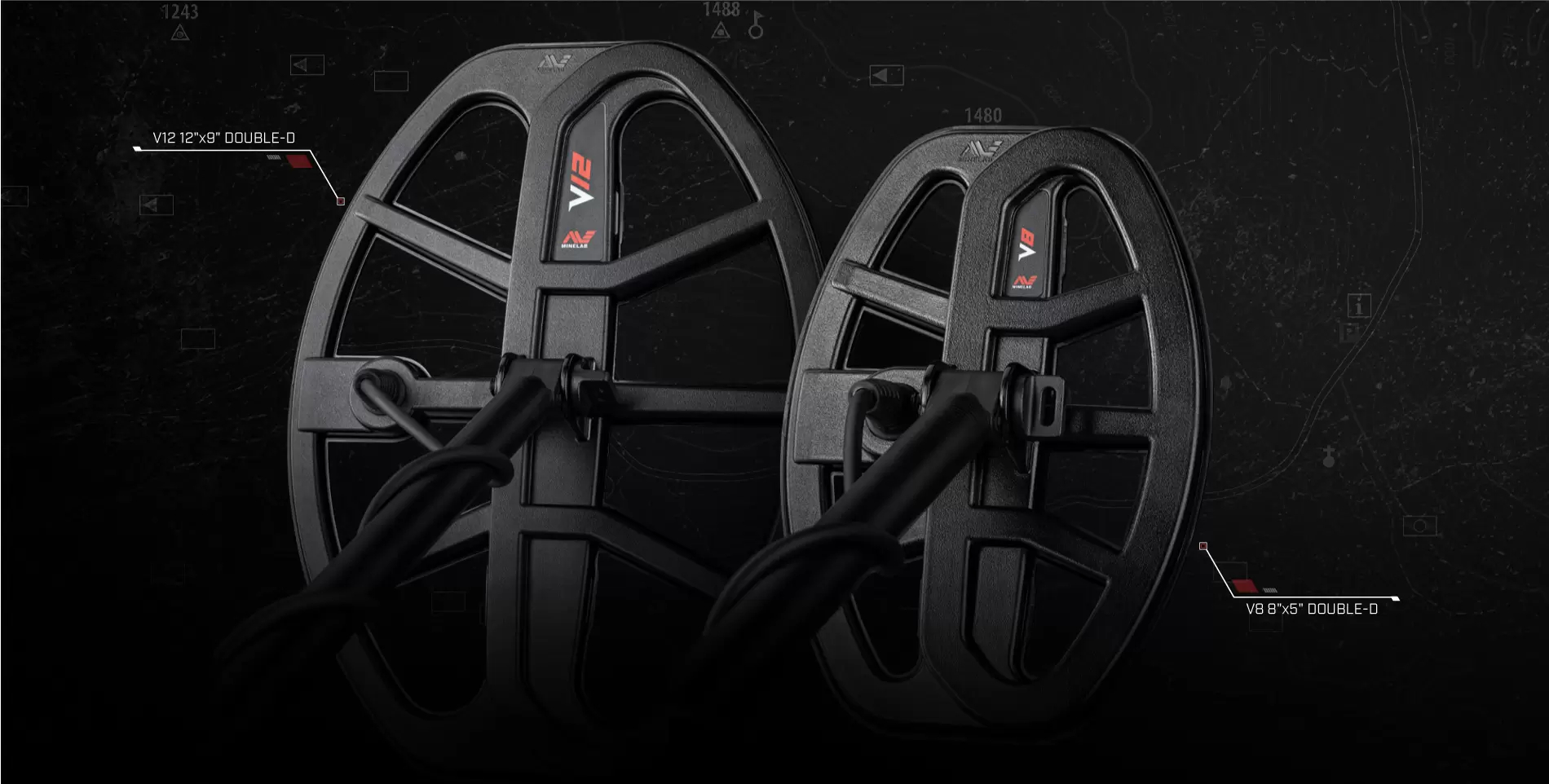

Vanquish V8 & V12 Coils



All Terrain Metal Detecting

VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver control over what metals you want to accept or reject.



Detect Modes

Now anyone can harness the unrivaled power of Multi-IQ, with easily selectable pre-set detecting modes, already set up and tested by Minelab experts. There is no need to learn the complexities of various settings, the hard work has been done for you. Simply select one of the four Search Modes — Coin, Relic, Jewellery, or Custom — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Search Mode.



Simultaneous Multi-Frequency

There are a few detectors on the market that claim to be multi-frequency, but they actually only switch between single frequencies, operating on just one at a time. Probably the most exciting feature of the Vanquish 540, which puts it way ahead of others in its price range (and above), is the inclusion of Minelab's groundbreaking Multi-IQ technology seen on Minelab's Equinox series machines, the world's best-selling metal detectors of 2018/2019, and also the first detectors to offer true simultaneous detection of multiple frequencies. All the Vanquish Series detectors operate on three frequencies, low, medium, and high simultaneously, giving you the best of all worlds whatever you are searching for.

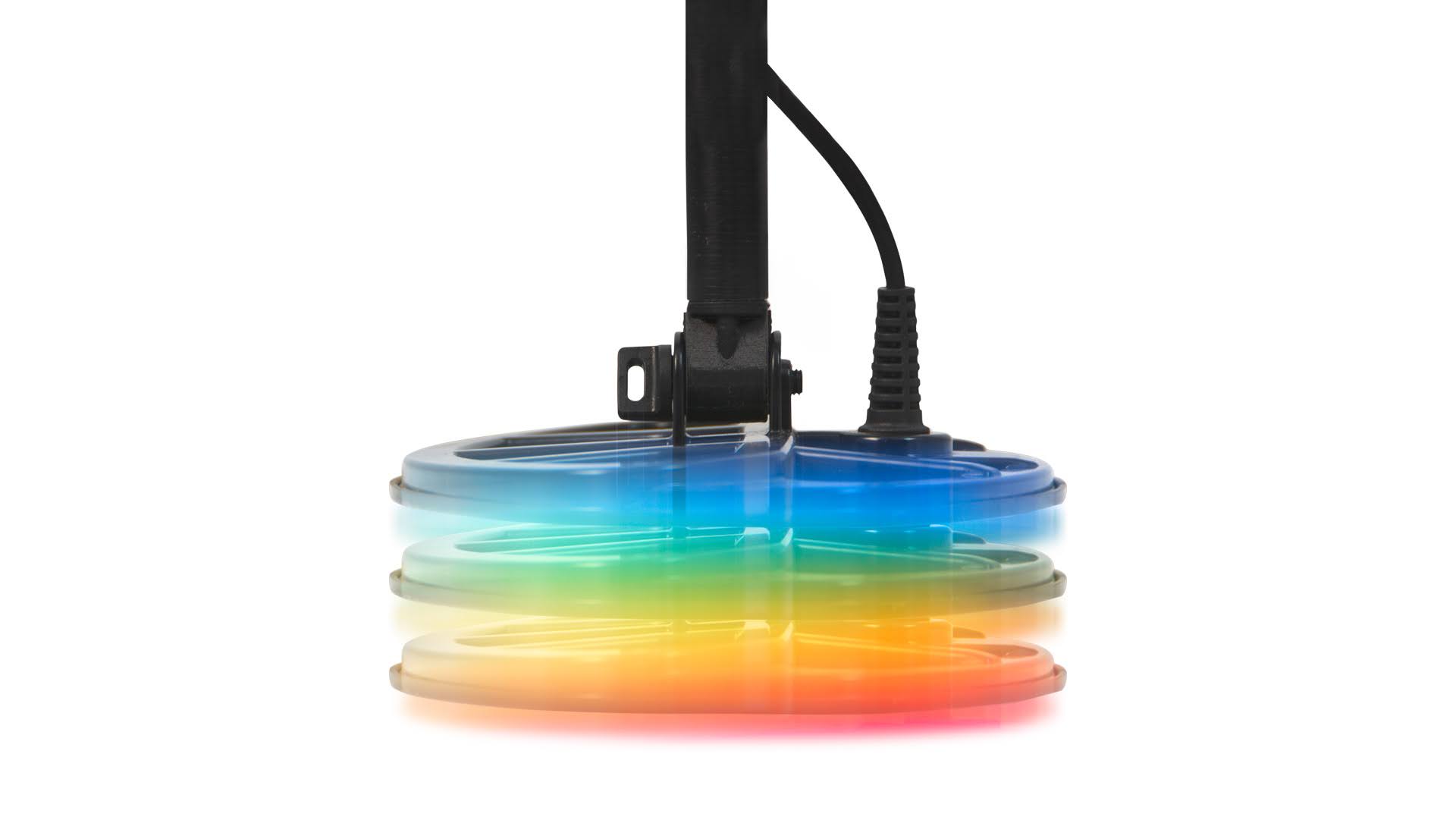

The Vanquish 540 operates across three simultaneous frequencies.

Multi-IQMulti-IQ

The real intelligence of the system is that the Multi-IQ processing will collate and compare the signals from all operating frequencies, analyzing the similarities and differences between them to get a clearer picture of what's really down there. This gives you better target ID and discrimination at greater depth, and the versatility to perform in a wider range of ground types, handling mineralisation, wet sand, etc. That means you can find and identify targets that a single frequency will struggle with.



Minelab Vanquish 540 Features

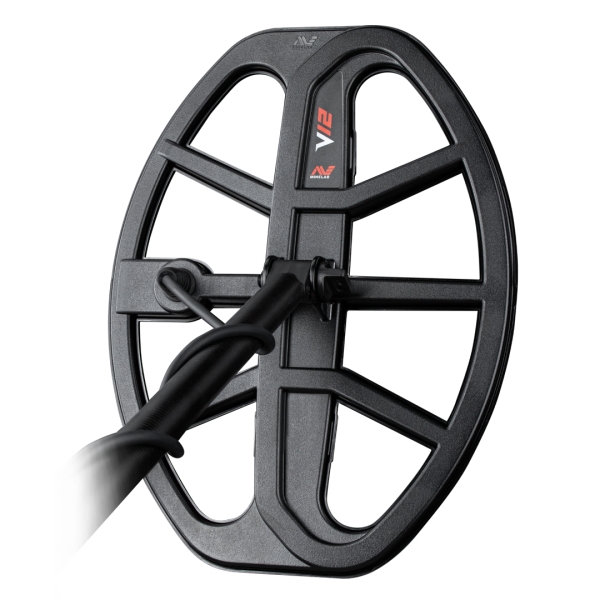

Included V12 Coil

Included Coils
Cover more ground and search deeper or detect more accurately and in tight spaces with both a 12” and 8” coil included as standard.

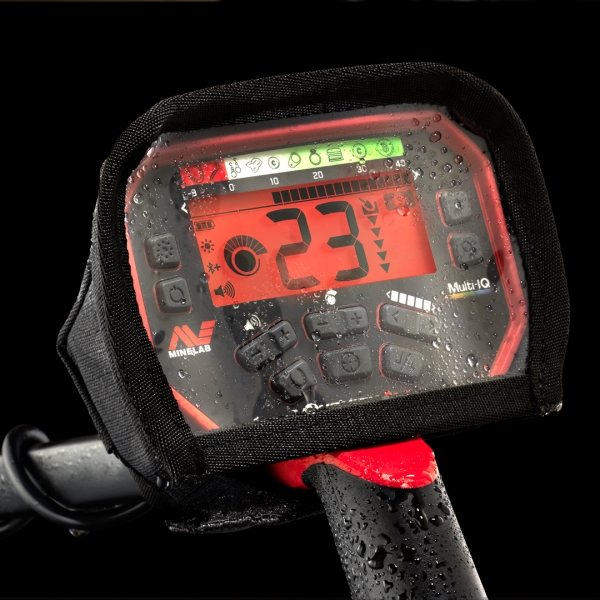

Waterproof Design

Waterproof
The Vanquish has waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with optional Rain Cover).

Audio Control

Audio Control
Automatic noise canceling, lag-free audio response and 10-volume settings put you in control.

Pinpoint Mode

Pinpoint Mode
Included pinpoint mode to help you locate targets with extreme precision.

Iron Bias

Iron Bias Control
More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.

Backlight

Backlight
Red LED Backlight to help low-light vision

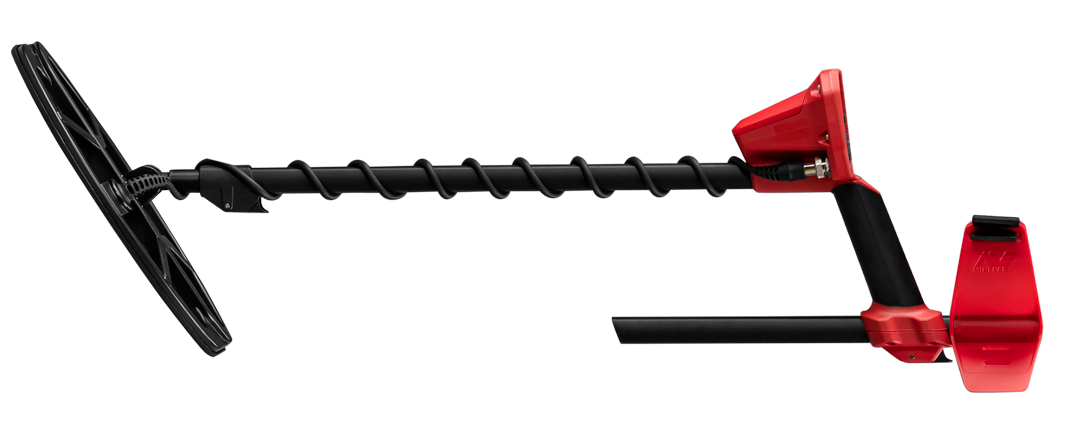

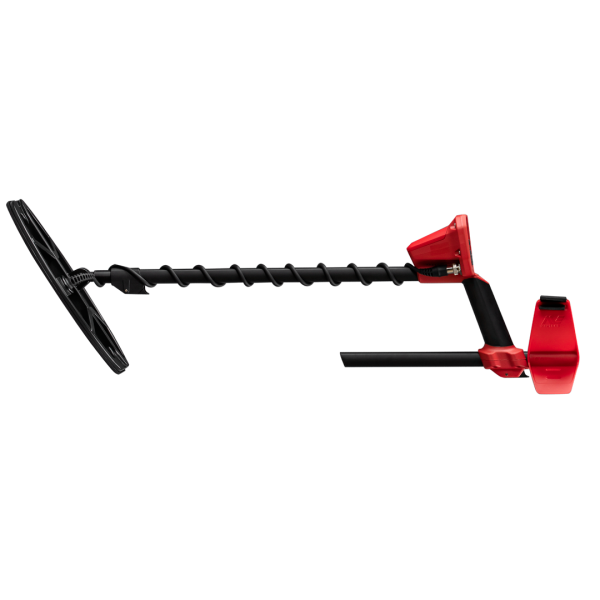

Pack & Carry

1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.

Pack and Carry

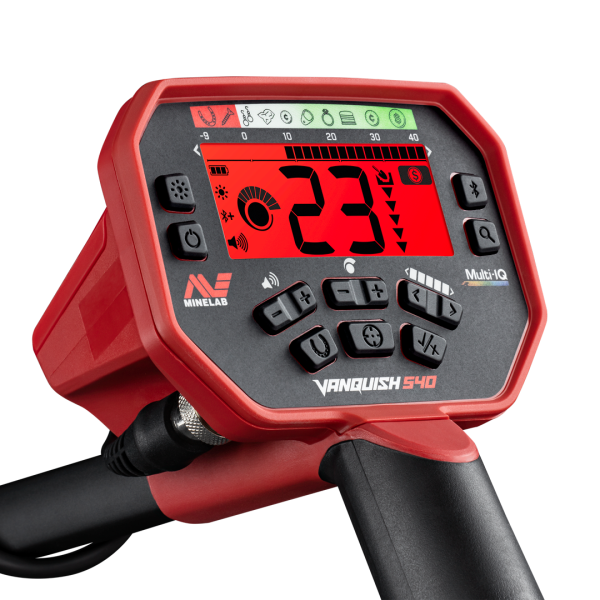

Vanquish 540 User Interface

Vanquish 540 User Interface

Using the Vanquish 540 user interface, you can:

  • Turn On/Off Power
  • Turn Backlight On/Off
  • Adjust Volume
  • All Metal Mode
  • Iron Bias High/Low
  • Pinpoint Mode
  • Adjust Sensitivity
  • Accept/Reject Targets
  • Discrimination Segment Edit
  • Change Search Mode
  • Turn Bluetooth On/Off

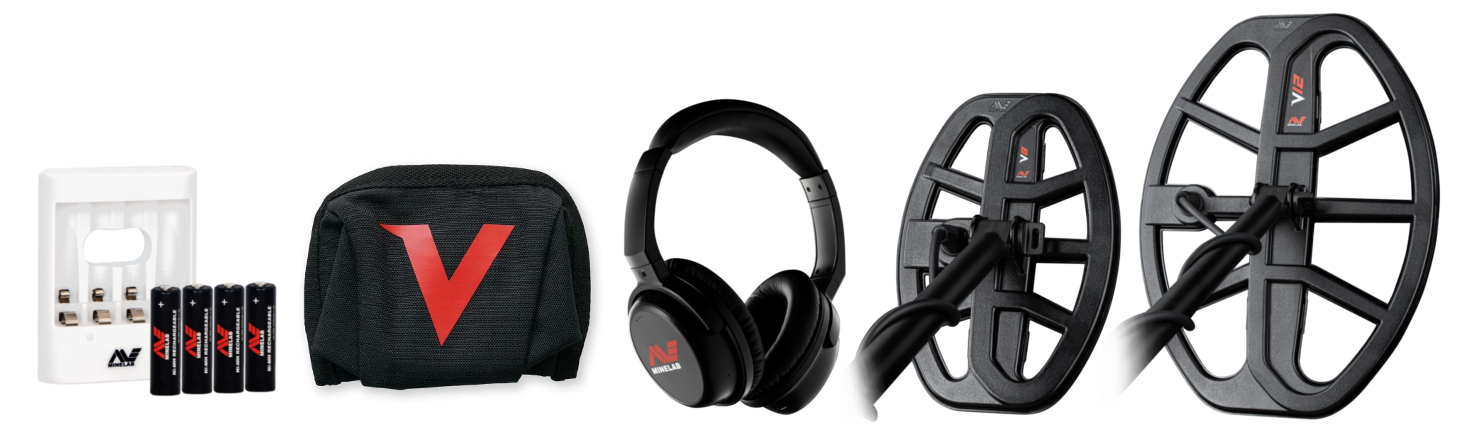

Vanquish 540 Pro-Pack Package Contents

  • The Minelab Vanquish 540 Multi-Frequency Metal Detector

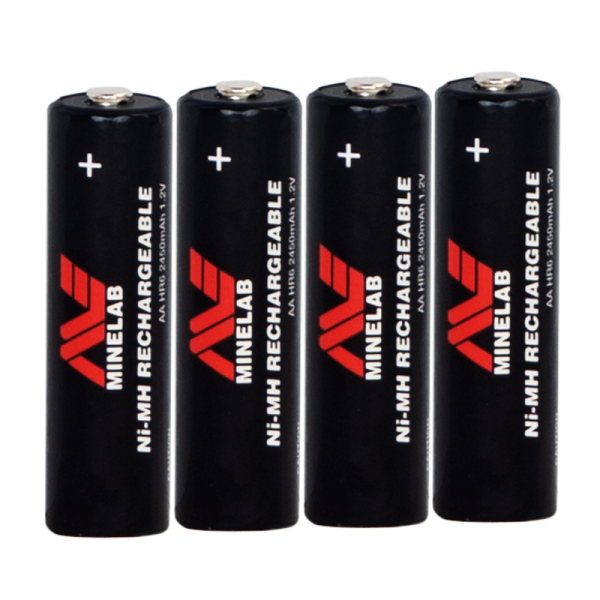

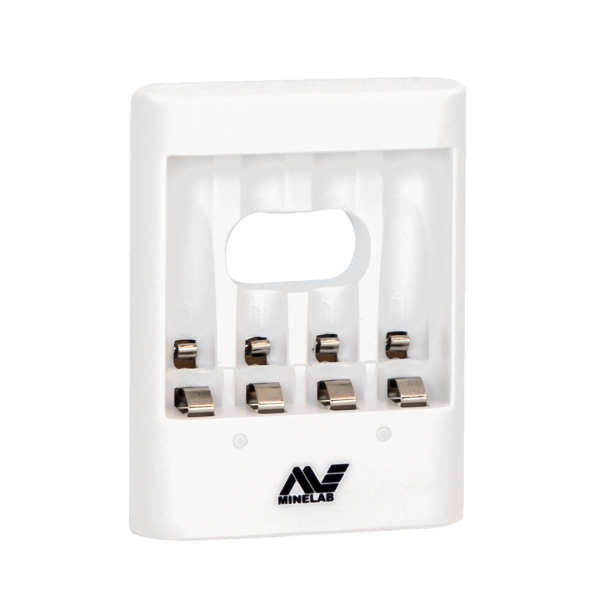

  • 4 x AA NiMH rechargeable batteries & charger
  • V12 (12 x 9" DD) Waterproof Search Coil
  • V12 Coil Cover

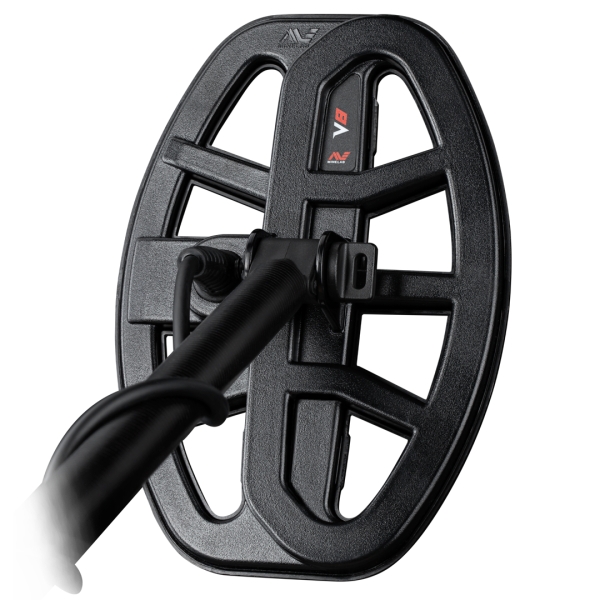

  • V8 (8 x 5" DD) Waterproof Search Coil
  • V8 Coil Cover

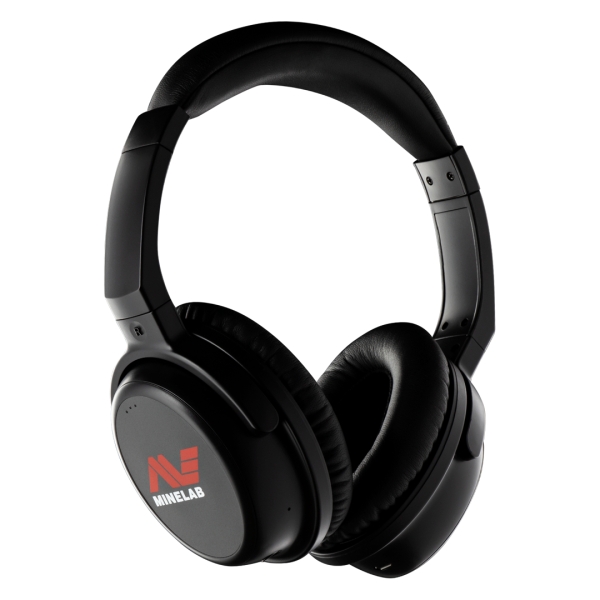

  • Wireless ML80 Bluetooth Headphones
  • Control Box Rain Cover
  • Arm Strap
  • Getting Started Guide

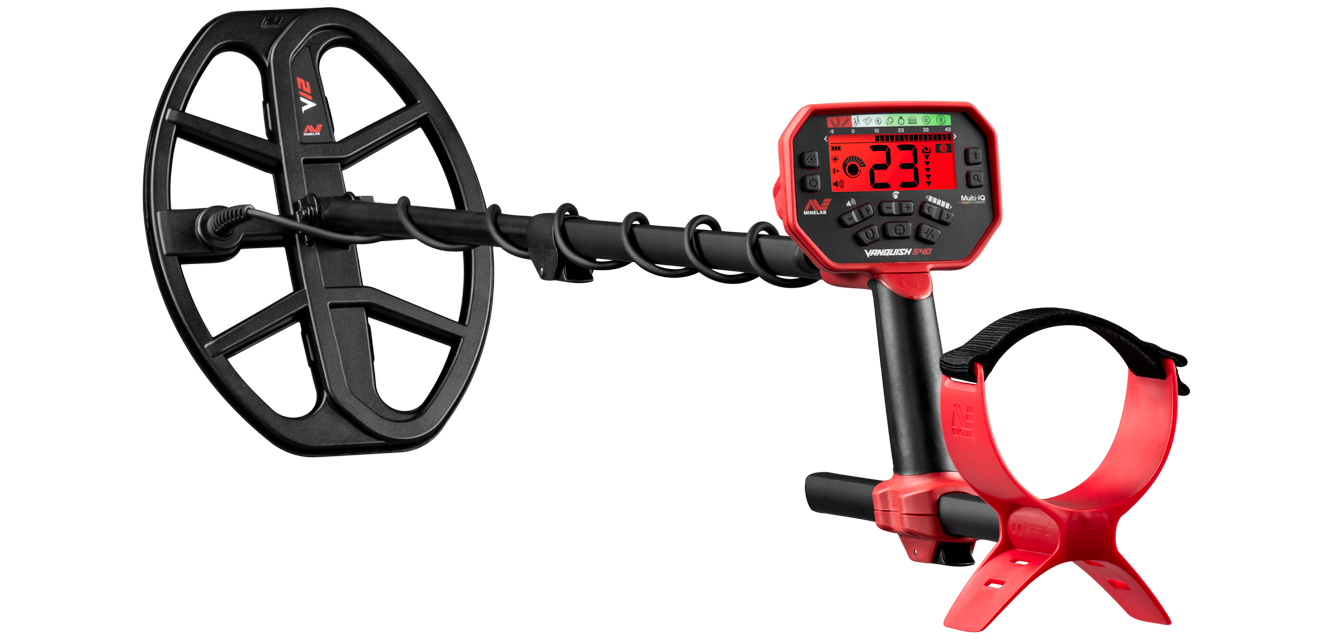

Vanquish 540 Metal Detector



Minelab Product Videos

What is Multi-IQ?

Vanquish Series Introduction Video



Product Manuals & Brochures

Vanquish 440/540 Getting Started Guide

Vanquish 440/540 User Guide

Vanquish Series Brochure



Learn more about the Vanquish 540 on Minelab's official website.



Our Expert Option

The Vanquish 540 Pro-Pack is an excellent choice, The Vanquish 540 itself really is a great machine for detecting inland and on the beaches, powerful but simple enough for beginners to use and also experienced detectorists too. The added Iron Bias control helps you to get in between those trashy ferrous iron targets and retrieve the non-ferrous targets in iron-infested sites. You can also change and lower the volume of the iron tone so that when you are searching in all metal mode you are not overwhelmed by it, this helps to pick out the nonferrous targets when in busy/trashy areas.

One of the biggest benefits of the 540 Pro-Pack is the included low latency ML80 wireless Bluetooth headphones which really make a difference to your metal detecting experience every time you go to dig a hole. The 12" elliptical coil is great for covering more ground and can gain greater depth if the ground conditions allow it. The smaller included 8" coil is great for stubble fields, rock pools on the beach, and tighter/trashy detecting areas.

There is truly nothing better than this for the price of £499.00!

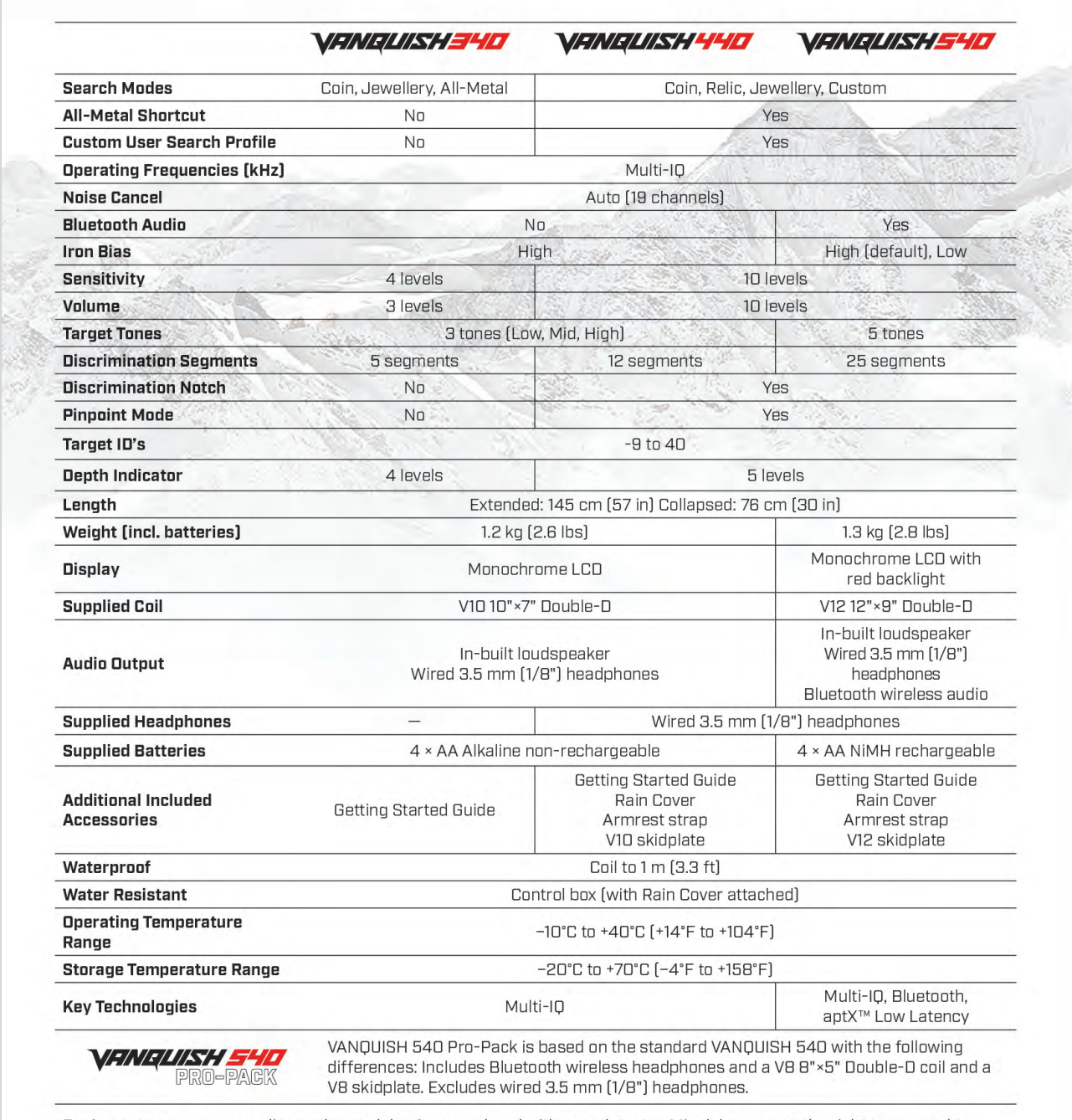

Minelab Vanquish Comparison Guide

Vanquish Series Comparison Guide



Need Any Help?

We have such a passion for this hobby that we will always give our honest opinion to you when buying a new metal detector or accessory, be it for yourself as a beginner or expert, or for your child entering this great hobby for the first time. If you need advice on anything related to metal detecting just give us a call on 01726 458614 or email us through our contact us page.

Technical Specs

Brand:
Minelab Metal Detectors
Product Type:
Multi-Frequency Metal Detector
SKU:
3820-0004
Operating Frequencie(s):
Low, Medium & High Simultaneously
Search Modes:
Coin | Jewellery | Relic | All Metal
Custom User Profiles:
Yes
Target ID's:
-9 to 40
Target Tones:
5 Tones
Target Volume:
10 Levels
Threshold Level:
Fixed
Threshold Pitch:
Fixed
Discrimination Segments:
25 Segments
Iron Bias/Iron Filter:
Adjustable High/Low
Sensitivity Settings:
10 Levels
Ground Balance:
Auto
Pinpoint:
Yes
Depth Indicator:
5 levels
Noise Cancellation:
Auto
Backlight:
Yes
Display:
Monochrome LCD
Audio Output:
In-built loudspeaker 3.5mm (1/8") headphones Bluetooth wireless headphones
Headphones:
Included, Bluetooth and aptX™ Low Latency headphones (non waterproof)
Search Coil(s):
Waterproof V12 12"x9" Double-D Coil & V8 8"x5" Double-D Coil
Waterproof:
Coil to 1m/3-feet
Weight:
2.8lbs (1.3kg)
Length:
Extended: 1450mm (57") Collapsed: 760mm (30")
Battery:
4 x AA NiMH rechargeable
Key Technologies:
Multi-IQ, Bluetooth, aptx™ Low Latency
Warranty:
3 Years control box and search coil
